Once these brackets are installed on a Front Runner Rack, no tools are needed to remove or install a roof top tent
Simply release the tabs on the 4 latches and lift the tent away in seconds
No more wrenching in tight spaces during the ‘off-season’ or time-consuming weekday removal of a roof top tent
This strong and rattle-free mounting system is built off-road tough for use with Front Runner Racks
Compatible with the TENT031 and other popular soft shell tent brands like TJM, ARB, Tepui, etc*
Compatible with hard shell tents such as Autohome/Maggionlina, and James Baroud*
Hard shell tent owners please read **IMPORTANT NOTE below

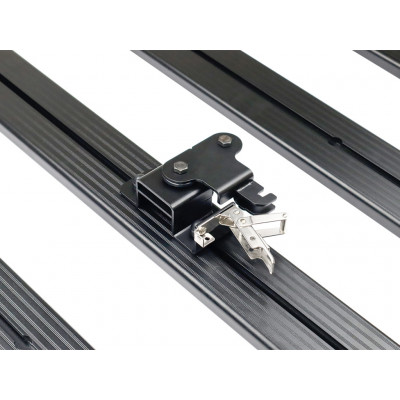

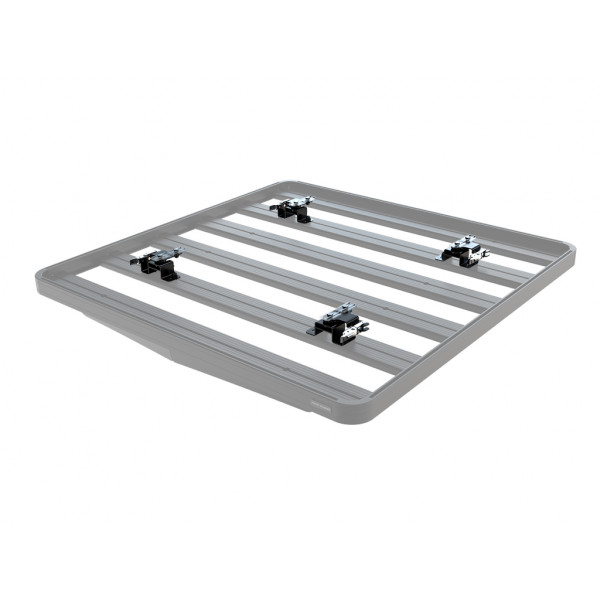

4 low profile base brackets are bolted to a Front Runner Rack while 4 self-aligning bushes are secured to the tent base channels using the appropriate Tent Channel Set
Secures in place with 4 latches with safety catches
Can be locked using RRAC134 combination cable lock
Certain tent sizes and designs will dictate the height needed to clear the edge of the Front Runner Rack
The brackets are small, unobtrusive and can be left on the roof rack when the tent is not mounted, leaving vast rack space available
No tent modification is required
Removed tents can be stored on the ground, raised slightly off the floor by the supplied steel bushes
Supplied with all required mounting hardware
Fitting instructions are included
TBMK034 or TBMK036 may be required for other tent brands (sold separately)
*Soft shell and hard shell tents may need additional Nut Plates, sold separately
**IMPORTANT NOTE: Hard shell tents need additional support
If you are using these brackets with hard shell tents, such as James Baroud or Autohome, and you are unable to position the tent to rest directly on the rack, or the edges of the rack side profiles, use - TBMK009
Depending on the tent manufacturer, your hard shell tent warranty may be voided if your tent becomes damaged and you did not provide proper lateral support for the hard shell tent
Note: Extra Mounting Brackets may be required for some tent and rack combinations which require extra support

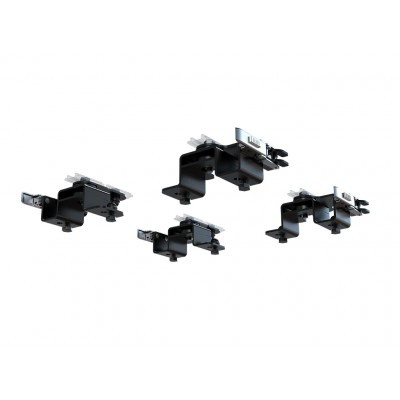

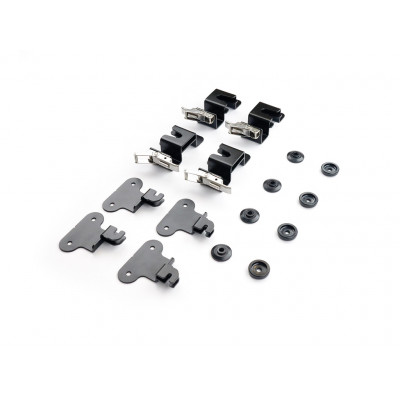

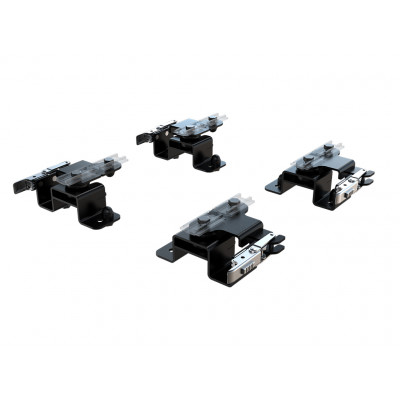

Consists of:4 x Quick Release BracketsInstallation HardwareFitting Instructions Materials used:Black powder coated steel304 Stainless steel Product Dimensions: (Per assembled bracket)131mm (5.2'') L x 142mm (5.6'') W x 60mm (2.4'') H Weight:6.6kg (14.6lbs)
