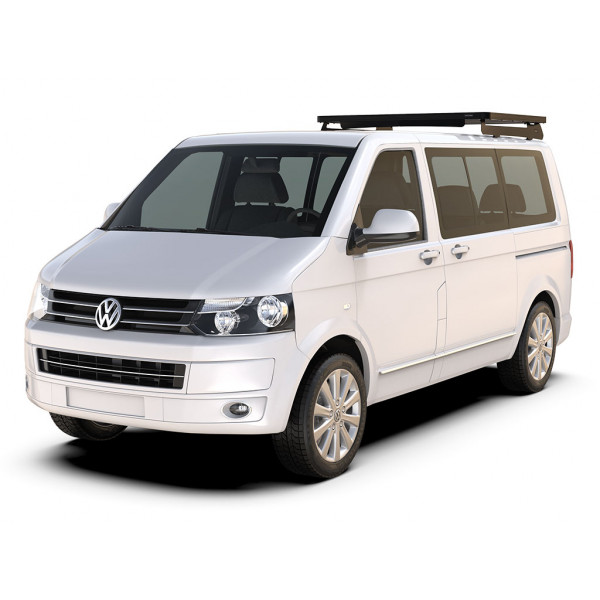

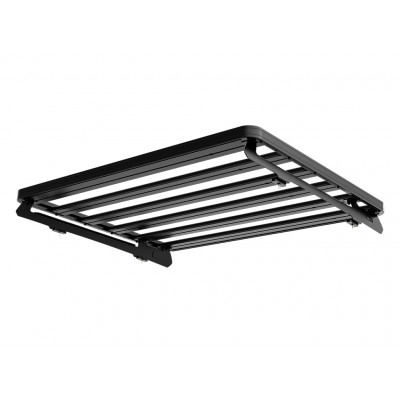

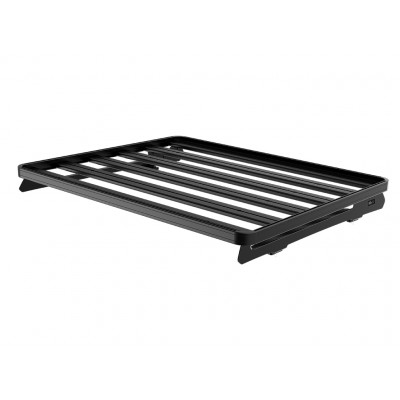

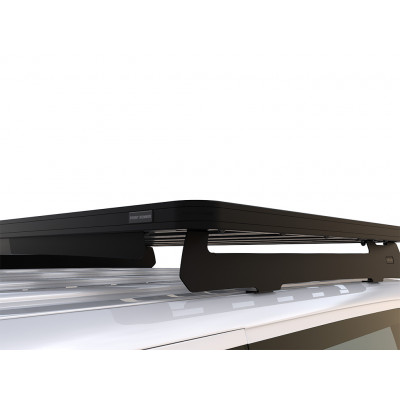

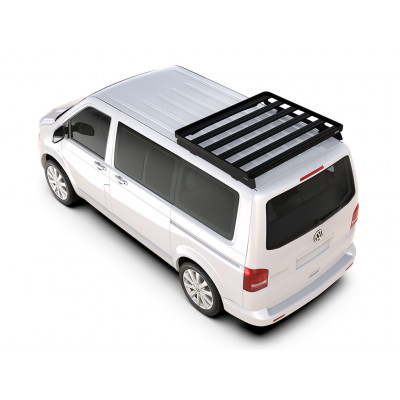

This 1156mm/45.5'' long 1/2 size Slimline II cargo carrying roof rack kit contains a Slimline II Tray, Wind Deflector, and 2 foot rails to mount the Slimline II Tray to your Volkswagen T5 Transporter
It easily installs using the existing factory mounting points
No drilling required
All Front Runner Rack Kits contain Installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle
These Foot Rails contain 2 openings to access Front Runner under rack mount tables (1 smaller TBRA018 and 1 larger TBRA017)
All Front Runner Racks are backed by a Limited Lifetime Warranty*KRVK005T - Volkswagen T5 Transporter SWB (2003-2015) Slimline II 1/2 Roof Rack Kit - by Front Runner Consisting of: 1x FAVT001 - Volkswagen T5 Caravelle/Transporter Foot Rails1x RRSTJ06 - SLII Tray - 1425mm(W)X1156mm(L)Material Used:Black epoxy powder - coated T6 aluminiumHigh strength steelApproximate Installed Weight: 34.75kg (76.61lbs) The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot or Grab-on Foot listed above
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2'') to the height of the Legs to determine the height of the rack from your vehicle's rain gutters
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof
Shipping Dimensions:Width: 620mm (24'')Length: 1730mm (68'')Height: 160mm (6'')Shipping Weight:Weight: 32.55kg (72lbs)
