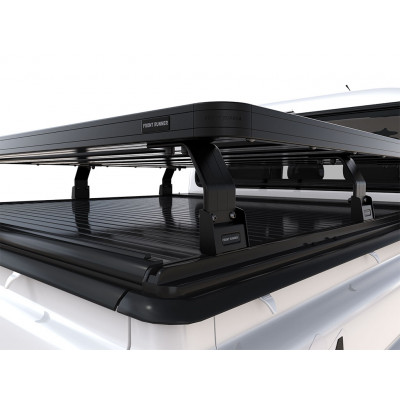

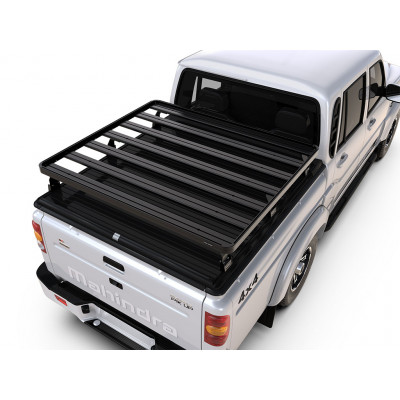

This kit creates a full-size rack that sits above your Mahindra Pik-Up's bed when fitted with a Roll Top Cover

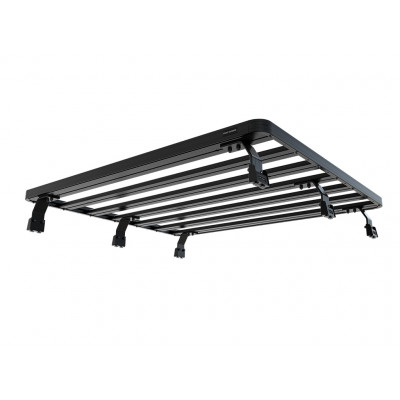

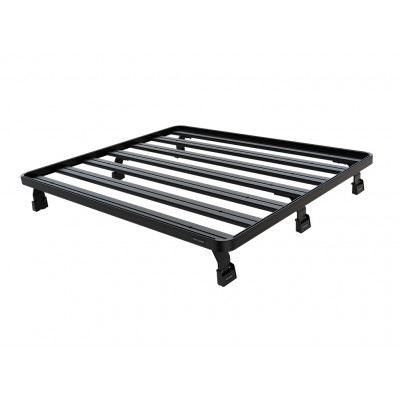

This Slimline II cargo carrying rack kit contains the Slimline II tray (1575mm x 1358mm) and 6 Pickup Roll Top Leg Mounts that fit into the existing factory/OEM tracks in your Roll Top Cover
All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle
All Front Runner Racks are backed by a Limited Lifetime Warranty* Note: If your Roll Top extrusion has a 6mm (0.24'') to 7mm (0.28'') slot opening, you may need RRAC962 for installation
KRMD007T - Mahindra Pik-Up Double Cab (2022-Current) Roll Top Slimline II Bed Rack Kit - by Front Runner Consisting of: 3x LASS028 - Pick-Up Roll Top Leg Mount1x RRSTP07 - SLII Tray - 1575mm(W)X1358mm(L) Material Used: Black epoxy powder - coated T6 aluminium High strength steel Approximate Installed Weight: 30.36kg (66.93lbs) The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot or Grab-on Foot listed above
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2'') to the height of the Legs to determine the height of the rack from your vehicle's rain gutters
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof
Shipping Dimensions: Width: 440mm (17'') Length: 1730mm (68'') Height: 255mm (10'') Shipping Weight: Weight: 32kg (70lbs)
