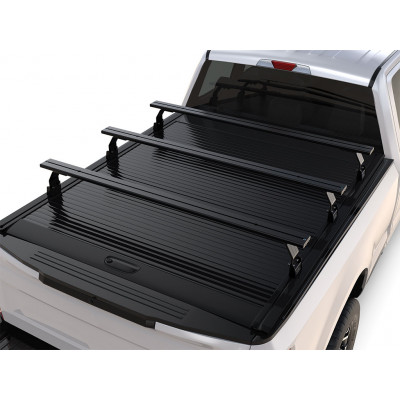

A set of Pickup Bed Load Bars used to transport gear over the bed of your Chevrolet Silverado/GMC Sierra 1500/2500/3500 w/ReTrax XR rails

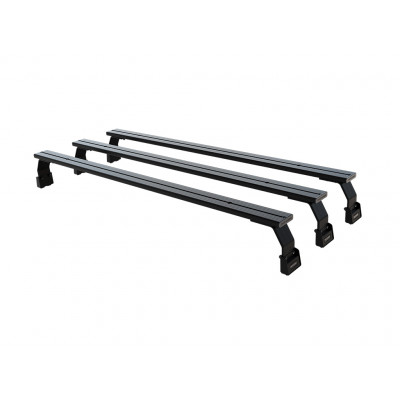

This low profile solution includes 3 x 1575mm Load Bars and 6 Pickup Roll Top Leg Mounts that fit into the existing ReTrax XR rails

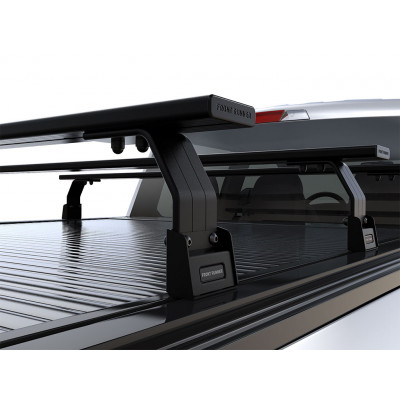

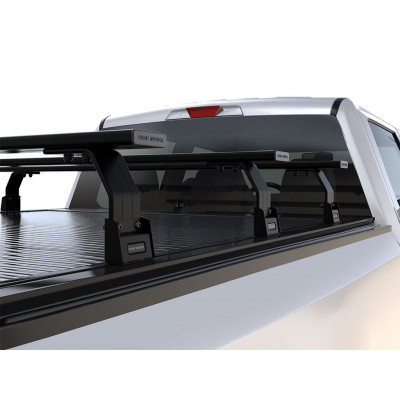

The Load Bars are mounted via Pickup Roll Top Load Mounts that bolt directly into the existing ReTrax XR rails
Allows for gear to be mounted above the pickup’s load bed
The load bed retains its load-carrying ability, while the drop down door functions as usual
Uses the same strong, corrosion-free aluminum slats found in Front Runner Racks
The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats
Made from steel and a durable, weather-resistant black powder coated aluminum
Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle
Note: If your Roll Top extrusion has a 6mm (0.24'') to 7mm (0.28'') slot opening, you may need RRAC962 for installation
KRCS009 - Chevrolet Silverado/GMC Sierra 1500/2500/3500 ReTrax XR 66 (1988-Current) Triple Load Bar Kit - by Front Runner Consisting of: 3x LASS028 - Pick-Up Roll Top Leg Mount1x LBSK019 - Roof Load Bar Set 1575mm(W) Material Used: Black epoxy powder - coated T6 aluminium Approximate Installed Weight: 9kg (19
84lbs) The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8'') to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8'') to the height of the Legs listed above to determine the height of the rack from your vehicle's rain gutters
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8'') to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof
Shipping Dimensions: Width: 160mm (6'') Length: 1690mm (67'') Height: 150mm (6'') Shipping Weight: Weight: 10kg (22lbs)
