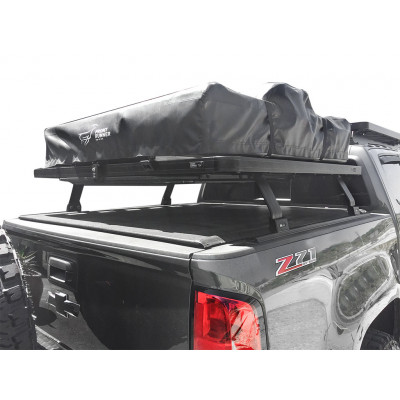

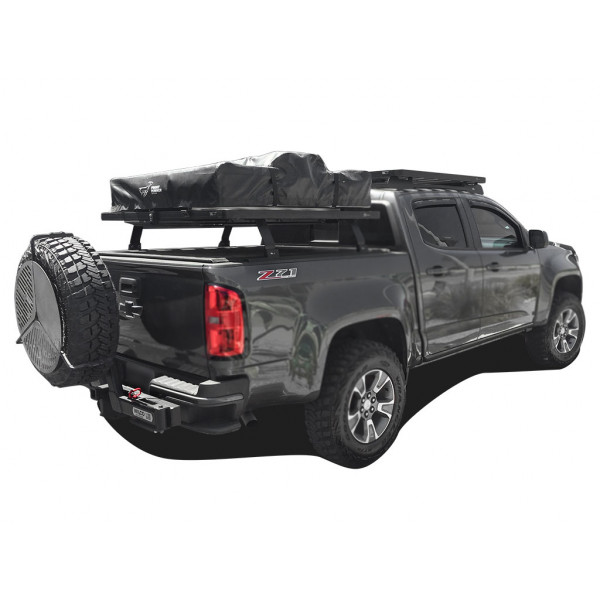

This kit creates a full-size rack that sits above your Chevrolet Colorado's (2015-current) truck bed

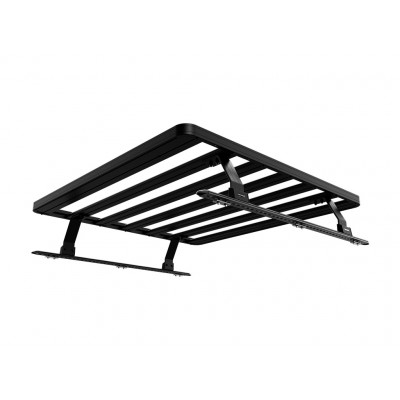

This Slimline II cargo carrying rack kit contains the Slimline II tray (1475mm x 1358mm), 2 Tracks and 4 Pickup Roll Top Leg Mounts that fit into the Tracks
  Drilling is required for installation
All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle
This Rack Kit creates a second level of storage for your load bed above the roll top of your Chevy Colorado
All Front Runner Racks are backed by a Limited Lifetime Warranty*A load bed top ledge with a minimum surface area of 55mm wide and length of 1000mm - 1600mm is required to mount Front Runner tracks
Dependent on the roll top used a minimum clearance of 20mm is required from the inner face of the leg base, to the roll top outer edge
This applies when the leg is fitted to a Front Runner Track or other Roll Top channel
For further information on installation, please see the fitment instructions in the INSTALL tab
Note: If your Roll Top extrusion has a 6mm (0.24'') to 7mm (0.28'') slot opening, you may need RRAC962 for installation
KRCC006T - Chevy Colorado Roll Top 5.1' (2015-Current) Slimline II Load Bed Rack Kit - by Front Runner Consisting of: 2x LASS028 - Pick-Up Roll Top Leg Mount1x RRAC939 - Pickup Load Bed Bolt Kit / 30mm1x RRSTM07 - SLII Tray - 1475mm(W)X1358mm(L)1x TRBU002 - Pick-Up Load Bed Tracks / 1200mm(L)Material Used:Black epoxy powder - coated T6 aluminiumHigh strength steelApproximate Installed Weight: 31.41kg (69
25lbs) The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot or Grab-on Foot listed above
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2'') to the height of the Legs to determine the height of the rack from your vehicle's rain gutters
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof
Shipping Dimensions:Width: 455mm (18'')Length: 1730mm (68'')Height: 270mm (11'')Shipping Weight:Weight: 34.63kg (76lbs)
