All Front Runner Rack Kits contain installation instructions as well as all components needed to mount the Slimline II Tray to the canopy

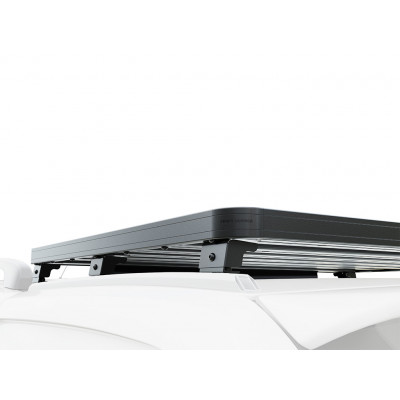

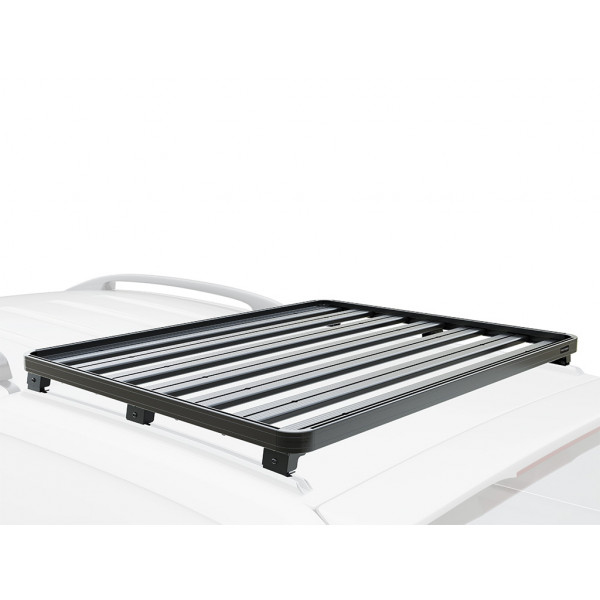

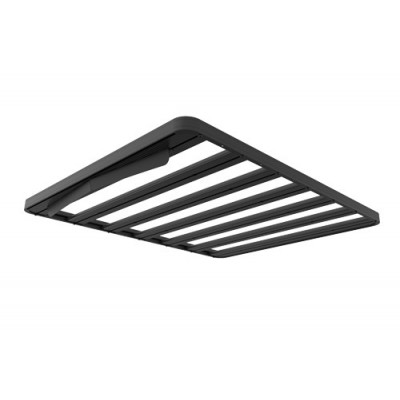

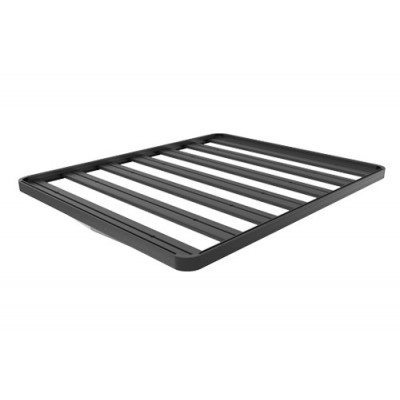

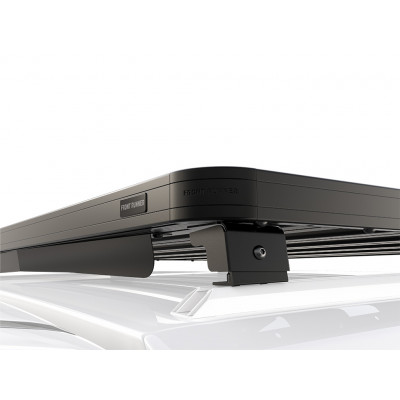

All Front Runner Racks are backed by a Limited Lifetime Warranty*KRCA076T - Rhinoman Canopy Slimline II Rack Kit / 1165mm(W) x 1358mm(L) - by Front Runner Consisting of: 3 x FASS012 - Foot Set / 40mm-50mm - by Front Runner1 x RRSTA07 - Slimline II Tray - 1165mm(W) X 1358mm(L) - by Front Runner Material Used:Black epoxy powder - coated T6 aluminiumHigh strength steel Approximate Installed Weight: 23.1kg (50.9lbs) The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot, Grab-on Foot or Strap-On Foot listed above
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2'') to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof
Shipping Dimensions:Width: 450mm (18.0'')Length: 1615mm (64.0'')Height: 140mm (6.0'') Shipping Weight:23.0kg (51.0lbs)
