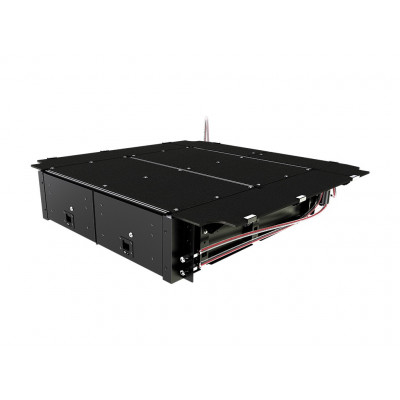

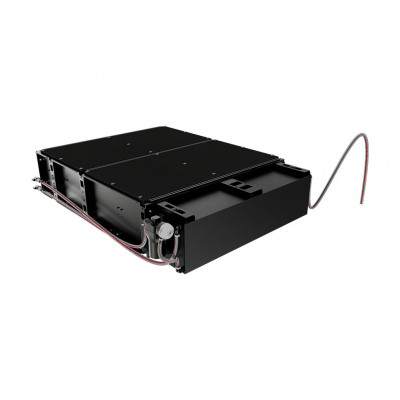

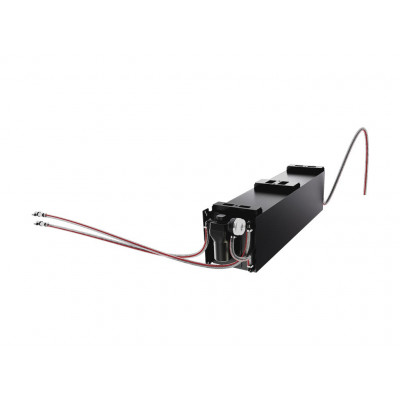

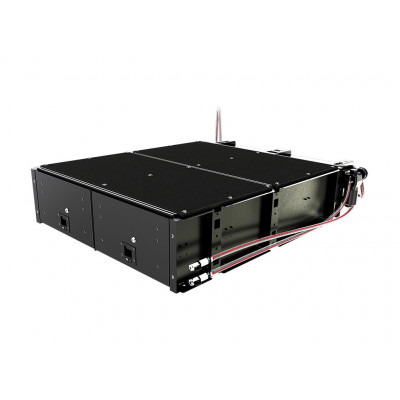

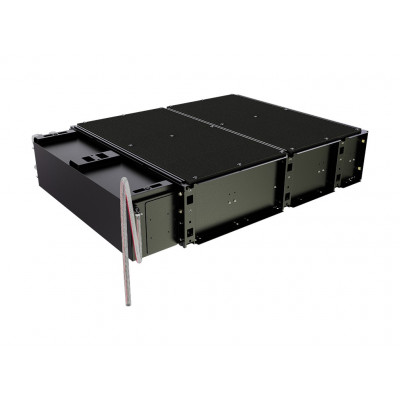

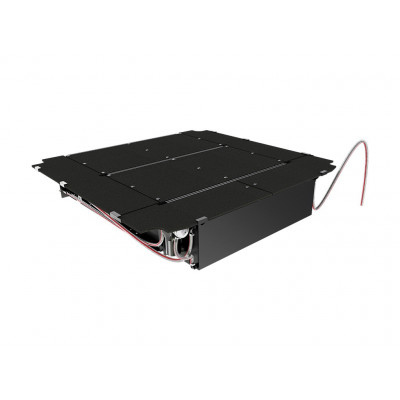

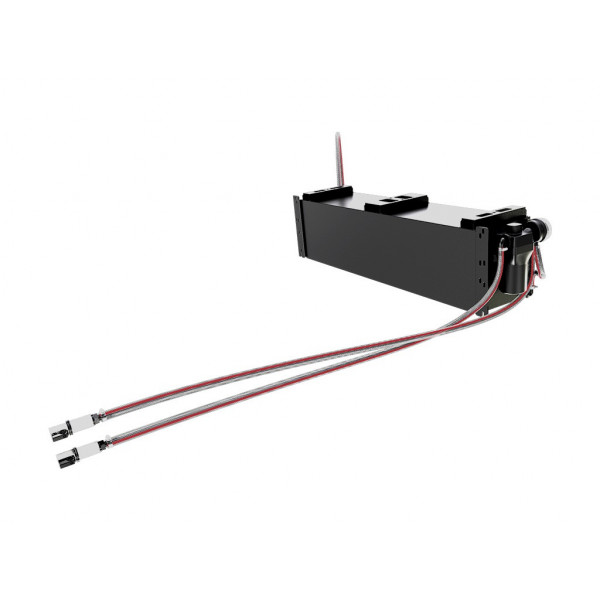

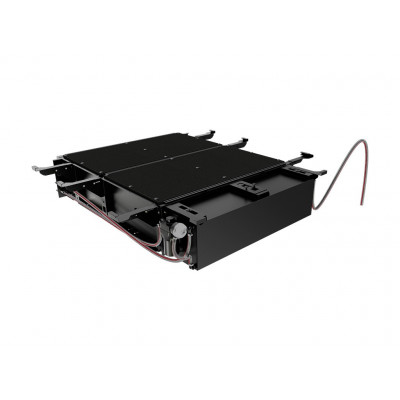

Water Tank:A 52L stainless steel water tank that fits behind the Front Runner Pickup Drawer / Large or Wolf Pack Drawer system
This water tank is placed below the drawer deck to utilize the space between the back of the drawer and the vehicle
All piping and fittings are provided to plumb the tanks contents to the front of the drawer system for ease of use
Knocked out holes in the drawer's side panel plate accommodates the fittings and ensures that all the pipe work is neatly hidden
Additionally a 12 volt electric pump is included to increase the outlet pressure and flow rate
Water Pump:Features: Built-in pressure switch automatically starts and stops pump instantaneously when discharge valve opens and closes
Compact design and plug-in port fittings make installation easy
Can run dry without damage and handle liquids up to 130° F (54° C)
No metal contact with liquid being pumped
Ball bearing drive throughout pump and motor assures longer pump life
Excellent self-priming capability
Pump may be located above the liquid level
Powerful, permanent magnet motor with low current draw and long life brushes
Consists of:1 x Stainless Steel Water Tank1 x Shut-off Valve1 x 12V Water PumpPipe KitInstallation HardwareWater Tank:Materials used:304 Stainless SteelProduct Dimensions:1065mm (41.9) W x 230mm (9
1) L x 285mm (11.2) HWeight:14.2kg (31.3lbs)Water Pump:Pump Specifications:12 Volts12.5 Liters per minute35psiProduct Dimensions:360mm (14.2) L x 135mm (5.3) W x 110mm (4.3) HWeight:2.13kg (4.7lbs)Approximate Total Product Weight:16.33kg (36lbs)
