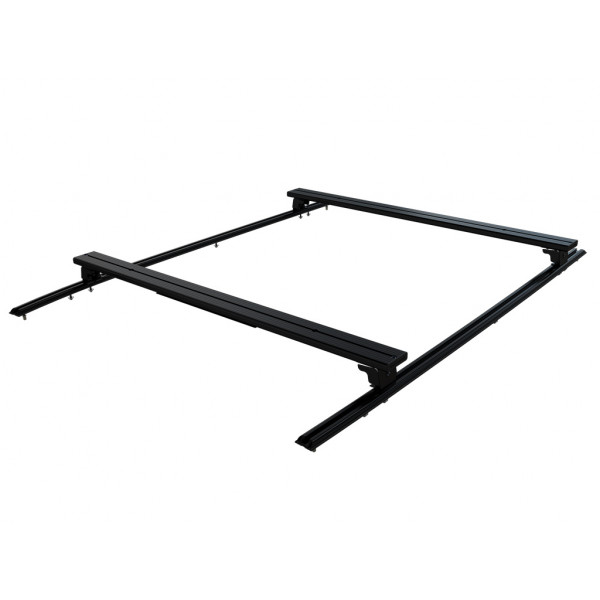

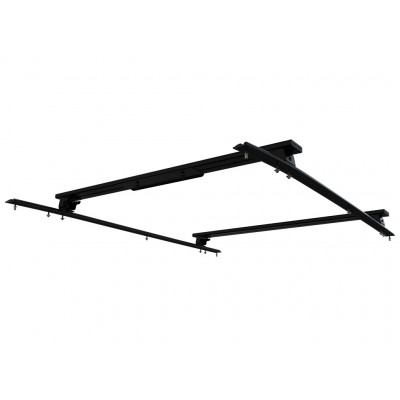

A set of Load Bars used to transport gear on the roof of your Mitsubishi Pajero/Montero CK SWB
This low profile solution includes 4 mounting Feet, 2 1255mm Load Bars, tracks, installation kit and fitting instructions
These Load Bars are mounted to the Mitsubishi Pajero/Montero CK SWB via a set of supplied Mounted Feet and Tracks

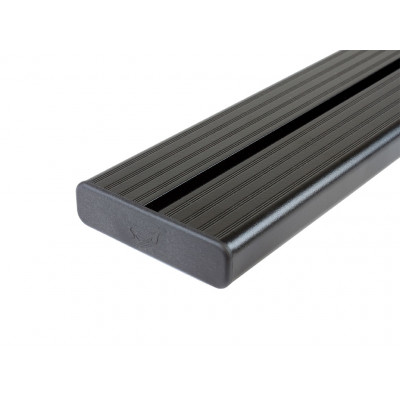

Uses the same strong, corrosion free aluminum slats found in Front Runner Slimline II Racks

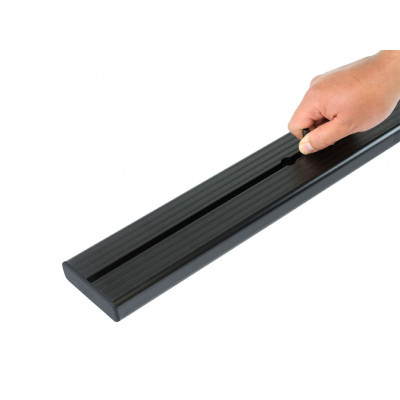

The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats
The Load Bars and mounting system can be used in the future as components to build a complete Front Runner Roof Rack
Made from stainless steel and a durable, weather resistant black powder-coated aluminum
Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle
KRMP003 - Mitsubishi Pajero/Montero CK (3rd GEN) SWB LB Kit Consisting of: 2x FASS012 - Foot Set / 40mm - 50mm1x LBSK014 - Roof Load Bar Pair 1255mm(W)1x TRMP002 - Mitsubishi Pajero CK (3rd Gen)SWB Tracks/1600mm(L)1x WDLB001 - Load Bar Wind Deflector / 10mm Material Used: Black epoxy powder - coated T6 aluminium High strength steel Approximate Installed Weight: 19
02kg (41.93lbs) The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot or Grab-on Foot listed above
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2'') to the height of the Legs to determine the height of the rack from your vehicle's rain gutters
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof
Shipping Dimensions: Width: 115mm (5'') Length: 1610mm (63'') Height: 250mm (10'') Shipping Weight: Weight: 9
4kg (21lbs)
