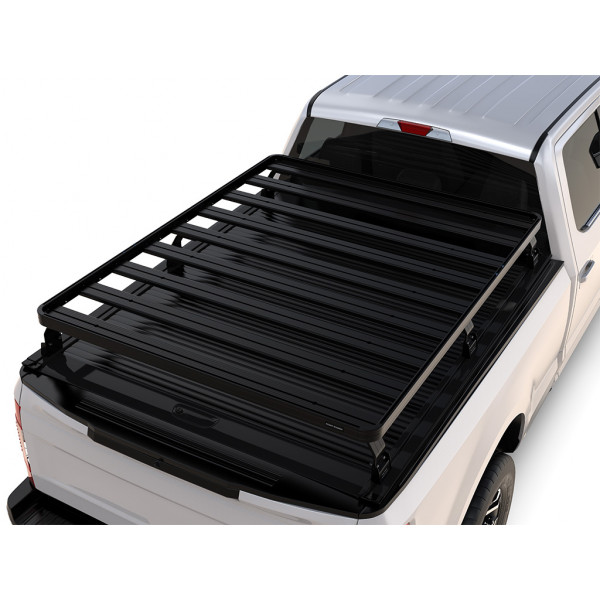

This kit creates a full-size rack that sits above your Ford Ranger’s (w/ReTrax XR rails) load bed
This Slimline II cargo carrying rack kit contains the Slimline II tray (1425mm x 1358mm) and 6 Pickup Truck Bed Universal Legs that fit into the existing ReTrax XR rails
All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle
All Front Runner Racks are backed by a Limited Lifetime Warranty* Note: If your Roll Top extrusion has a 6mm (0.24'') to 7mm (0.28'') slot opening, you may need RRAC962 for installation
KRFR018T - Ford Ranger ReTrax XR 6 (2019-2022) Slimline II Load Bed Rack Kit- by Front Runner Consisting of: 3x LASS028 - Pick-Up Roll Top Leg Mount1x RRSTJ09 - SLII Tray - 1425mm(W)X1762mm(L) Material Used: Black epoxy powder - coated T6 aluminium High strength steel Approximate Installed Weight: 29

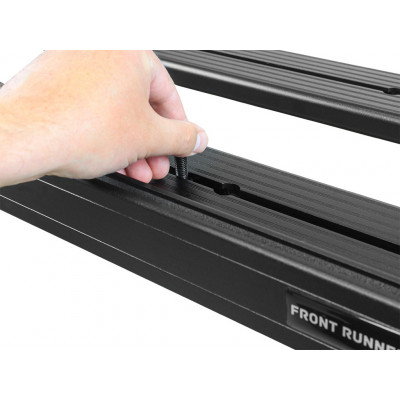

4kg (64.82lbs) The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot or Grab-on Foot listed above
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2'') to the height of the Legs to determine the height of the rack from your vehicle's rain gutters
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2'') to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof
Shipping Dimensions: Width: 440mm (17'') Length: 1730mm (68'') Height: 260mm (10'') Shipping Weight: Weight: 34kg (75lbs)
